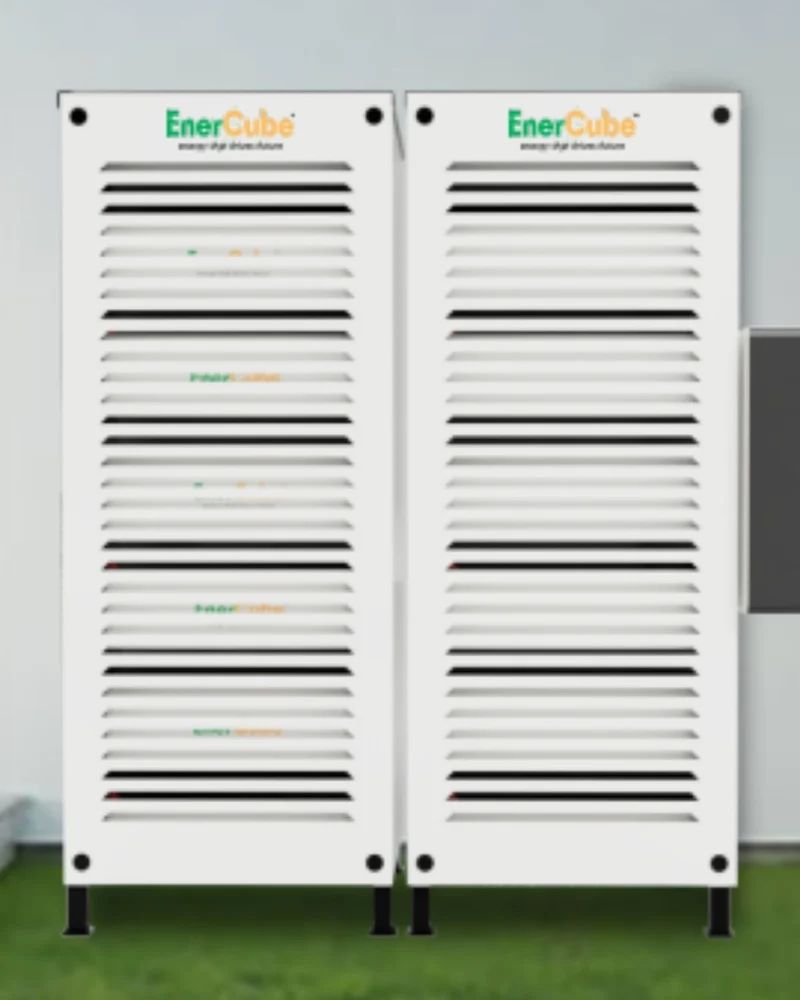

EnerTech - 10kW/20kwh Residential Battery Energy Storage System (BESS)

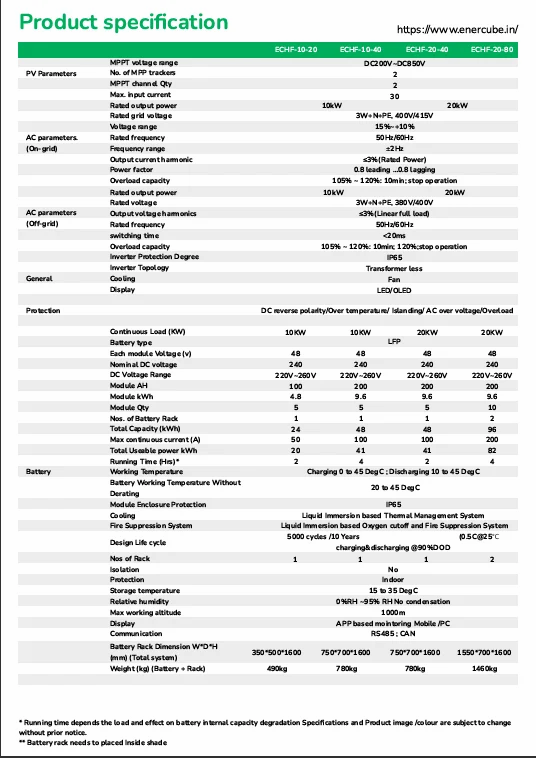

EnerTech - 10kW/20kwh Residential Battery Energy Storage System (BESS) Specification

Efficiency
>93%

Features
High Safety, Long Cycle Life, Modular Design, Real-time Monitoring, Fast Charging

Maintenance Type
Low Maintenance

Input Voltage
180-260V AC

Product Type
Battery Energy Storage System (BESS)

Material
Lithium Iron Phosphate (LiFePO4)

Number of Cells
96

Power
10kW

Operating Temperature
-10C to 50C

Max Voltage
360V

Max System Voltage
400V

Output Voltage
230V AC

Cable Length
1.5m

Switch Mode
Automatic/Manual

Size
Large

Dimension (L*W*H)
1200mm x 600mm x 400mm

Color
White/Grey

Weight
220 kg

Application
Residential, Home Backup Power, Solar Integration

Type Of Technology
Advanced LiFePO4 BMS Controlled

Installation Type
Floor Mounted/Wall Mounted

EnerTech - 10kW/20kwh Residential Battery Energy Storage System (BESS) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About EnerTech - 10kW/20kwh Residential Battery Energy Storage System (BESS)

System Type	Battery Energy Storage System
String Maximum Input Current	30A
Maximum Charging Current	100A
Maximum Output Current	50A
Maximum Conversion Efficiency	95%
Full load MPPT Voltage Range	DC 200V DC 850V
Maximum Efficiency	95%
Country of Origin	Made in India
Availability	In Stock

Upgrade your energy infrastructure withEnerTechs Hybrid eCo Series BESS asmart, stackable, and high-performance energy storage solutiondesigned for residential, commercial, and light industrial applications.

Why EnerTech eCo Series BESS?

Integrate Solar Intelligently:Maximize solar energy capture while optimizing battery performance. PV first, battery second grid or genset backup automatically managed.
Streamlined Installation:Floor-mounted, sleek design forquick, hassle-free setup.
Parallel-Ready:Stackable to scale from10kWh to 50kWh, meeting evolving energy demands.
Rapid Charging:High-current charge/discharge capabilities for peak performance.
Safety & Durability:IP65-rated,liquid immersion thermal management, fire-suppression technology, and10-year design life.

Key Technical Features:

Lithium Iron Phosphate (LiFePO4) modules, high-voltage, >5000 life cycles at 90% DOD.
Hybrid integration with EnerCube inverters ensuresintelligent load management and data monitoring.
20ms transfer time for uninterrupted power during grid failures.
Continuous AC overload: 110% for sustained high-capacity operations.
Operating temperature: -30C to 50C; designed for extreme climates.

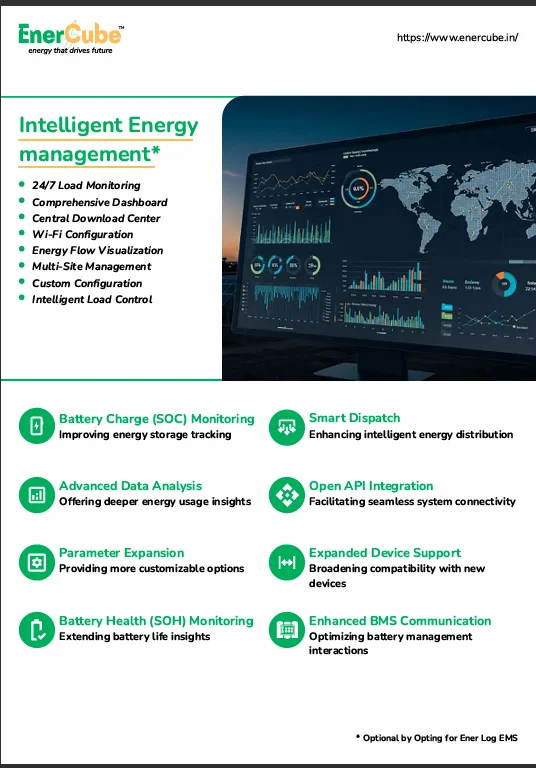

Fully monitored via mobile/PC app: SOC, SOH, energy flow, intelligent dispatch, and multi-site management.

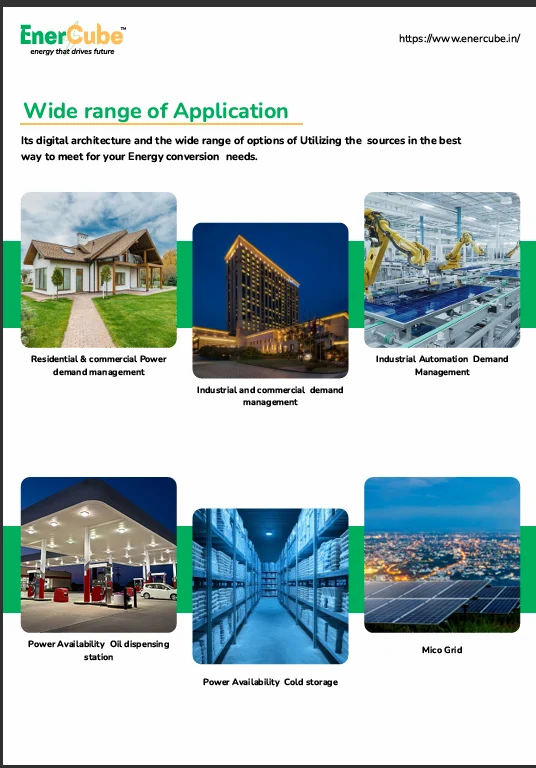

Applications:

Residential Homes & Apartments
Hotels & Resorts
Commercial Buildings & Offices
Microgrids & Backup Power Systems
Industrial & Light Manufacturing Units

PV & Grid Integration:

Supports DC oversizing 150%-160% to boost solar capture.
Smart grid export limitation for optimized feed-in.
Rapid charge/discharge for high-demand loads.

Package Includes:

EnerCube BESS Battery Modules
PV Hybrid Inverter
IP65 Rack Enclosure & Mounting System
BMS with RS485 / CAN Communication
Optional EnerLog EMS for advanced analytics

EnerTech eCo Series Power that never quits!

Capacity:10kWh (Expandable up to 50kWh)
Nominal Voltage:220-260V
Continuous Load:10kW
Weight:490kg (Battery + Rack)
Operating Environment:Indoor, 1535C, 095% RH

Flexible Modular Design for Expanding Energy Needs

EnerTechs BESS features a modular stackable design, allowing seamless expansion up to five units in parallel. This scalable approach ensures users can increase energy storage capacity as household needs grow, providing both future-proofing and tailored energy solutions. The modularity also makes installation and maintenance straightforward, meeting diverse application scenarios in Indian residential settings.

Comprehensive Safety, Performance, and Compliance

The system is built on advanced LiFePO4 cells with intelligent BMS control for maximum safety and longevity. Certified under IEC62619, UN38.3, CE, and RoHS, it maintains optimal performance in a range of environments, backed by IP54-rated protection and low noise operation below 40 dB(A). Real-time system monitoring and remote diagnostics enhance user confidence and operational reliability.

FAQs of EnerTech - 10kW/20kwh Residential Battery Energy Storage System (BESS):

Q: How does the modular stackable design benefit residential installations?

A: The modular stackable design allows homeowners to add or remove battery units easily, scaling energy storage based on precise needs. This flexibility simplifies future upgrades, reduces upfront investments, and ensures compatibility with expanding solar power setups or increasing home energy requirements.

Q: What safety features and certifications does the EnerTech BESS offer?

A: EnerTech BESS employs advanced LiFePO4 battery technology, sophisticated BMS, and includes overcurrent, overvoltage, and temperature protection. It holds international safety certifications including IEC62619, UN38.3, CE, and RoHS, ensuring robust protection and operational safety for residential environments.

Q: When should I use EnerTech BESS as a primary or backup power source?

A: The EnerTech BESS is ideal for use during power outages, periods of peak energy usage, or for integrating with solar panels to store surplus power. Its automatic/manual switch mode allows for seamless transition between grid power and stored energy, providing consistent, uninterrupted electricity for your home.

Q: Where can EnerTech BESS be installed in a home?

A: Suitable for both floor and wall mounting, the system can be installed in garages, utility rooms, or any covered space with adequate ventilation. The IP54 protection ensures resistance to dust and splashing water, making it adaptable to various household environments.

Q: What process is involved in remote monitoring and system management?

A: Users can monitor system status, performance data, and receive alerts through a dedicated mobile app via WiFi, RS485, or CAN interfaces. This real-time monitoring simplifies performance optimization and enables early detection of potential issues, enhancing the safety and efficiency of energy management.

Q: How can EnerTech BESS integrate with my solar PV system?

A: EnerTech BESS is designed for seamless solar integration, storing surplus solar energy for later use. It operates in both on-grid and off-grid modes, allowing homeowners to maximize solar power usage, reduce electricity bills, and gain greater energy independence.
