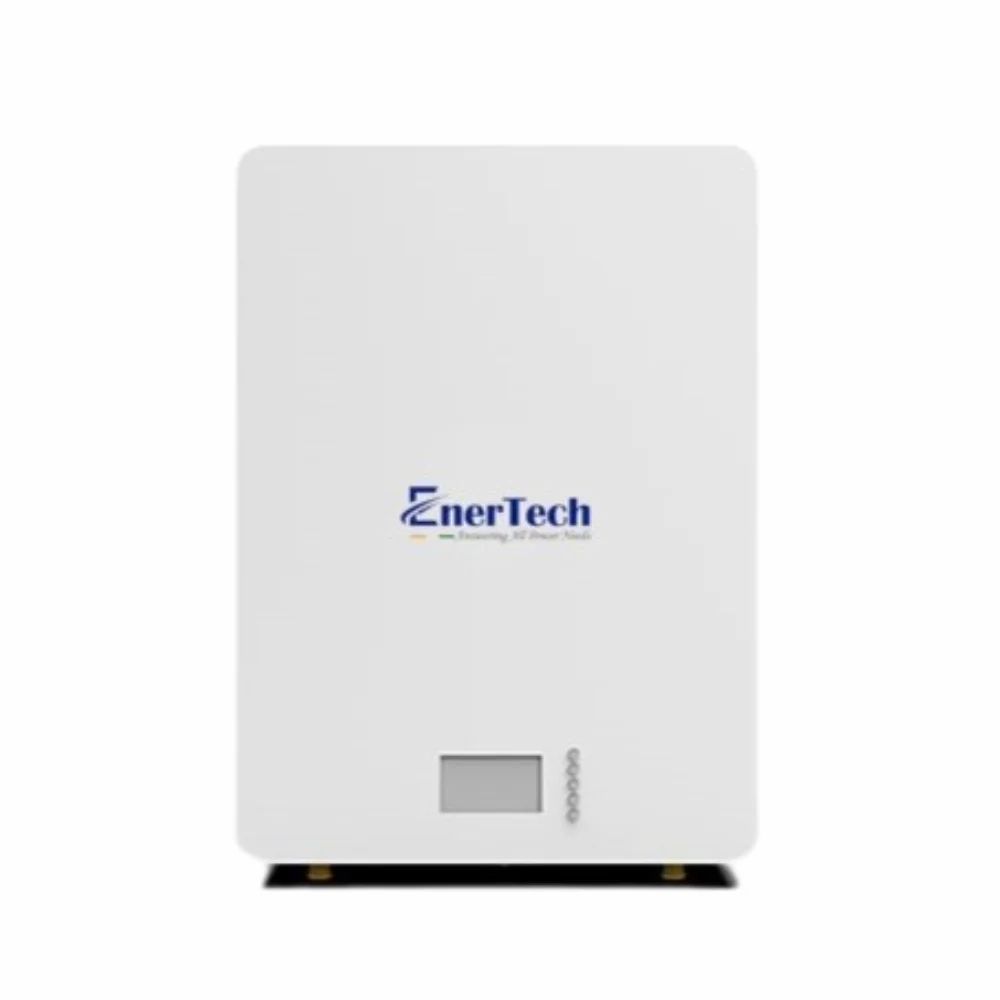

5KVA 5KWh 1Ph Enertech Battery Energy Storage System

About 5KVA 5KWh 1Ph Enertech Battery Energy Storage System

Country of Origin	Made in India
Voltage	230 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
Humidity	5%-90%
Ambient Temperature	10 DegreeC to 45 DegreeC
Operating Temperature	-,10 DegreeC to 50 DegreeC
Battery Type	Lithium-ion(LFP)
Depth of Discharge (DOD)	90%
Ampere Rating	100Ah
Battery Voltage	48 VDC
Battery Cycles	6000 at 80% DOD
Efficiency (Peak)	98% (Line Mode)
Waveform	Pure sine wave
Transfer Time	10 ms
IP	20


Energy Storage Solutions, The Future of Energy

ENER-Energy Storage  System (ENER system)
ENER-ESS is an intelligent equipment integrating the battery, PCU and Energy Management system. It is having  access to Grid power, RE Sources, diesel generator and to configuration the scientific utilization, to provide users with green, environmental protection, noise free, high reliability and high security power services.

Are you looking for the optimal solar energy storage solution for your diverse load requirements? Look no further than Enertech's cutting-edge solar Energy Storage System (ESS).

Enertech's Solar ESS empowers you to maximize your energy efficiency and achieve greater control over your power consumption. With this advanced system, you can seamlessly integrate solar energy generation with storage capabilities, ensuring a steady and reliable energy supply even during fluctuating conditions.

Imagine having the flexibility to store excess solar energy during the day and utilize it during peak demand hours or when the sun isn't shining. Enertech's Solar ESS provides precisely that, giving you the freedom to tailor your energy usage to your needs.

Enertech helping you to select the right ESS configuration that aligns perfectly with your load application. From enhanced cost savings and reduced dependency on grid power to contributing to a greener future, Enertech's Solar ESS brings a multitude of benefits to your doorstep.

Conguration

• PCS
A bidirectional AC/DC converter is an incredible technology that enables both DC to AC and AC to DC conversion.
• Battery System
The system primarily consists of lithium iron phosphate cells, which are secure, effective, and long-life. Cells are connected in series to create battery modules, and numerous modules are connected in series to create battery clusters.

• Battery Management System
The core components of the system can effectively protect the battery from overcharge, over discharge and  over-current. The safe, dependable, and effective operation of the entire system can be guaranteed by the balanced management of the cells at the same time.

• Power Management System
Monitoring system operation data, managing operation strategies, keeping historical data records, keeping track of system state, etc.

• Enclosure
Protection degree IP54.

• Air Conditioning
Air Conditioning (HVAC) system is congured to maintained an optimal temperature to maximize energy system operational life and eciency.

Efficient and convenient:
1. An integrated system with a standard PCS and battery module makes capacity extension, installation, and maintenance simple.
2. PV and diesel generators are easily accessible, and intelligent multi-energy management is used.
3. Fixed on the ground, can be loaded and unloaded by forklift and hoisted by lifting ring.
4. Plug & play operation.

Cost optimization:

• Manage the energy cost, Peak shaving, backup power supply, microgrid, power quality improving  and energy storage,etc.
• Plug & play, less space and installation cost.
• Long cycle life, low failure rate, reduce operation and maintenance investment.

Key product features and benefits:
• Safe and reliable.
• IP54 Enclosure safe and reliable operation in outdoor environment.
• An integrated system with a standard PCS and battery module makes capacity extension, installation, and maintenance simple.
• PV and diesel generators are easily accessible, and clever multi-energy management is used.
