Industrial Battery Charger

Frequency Converter

Online UPS

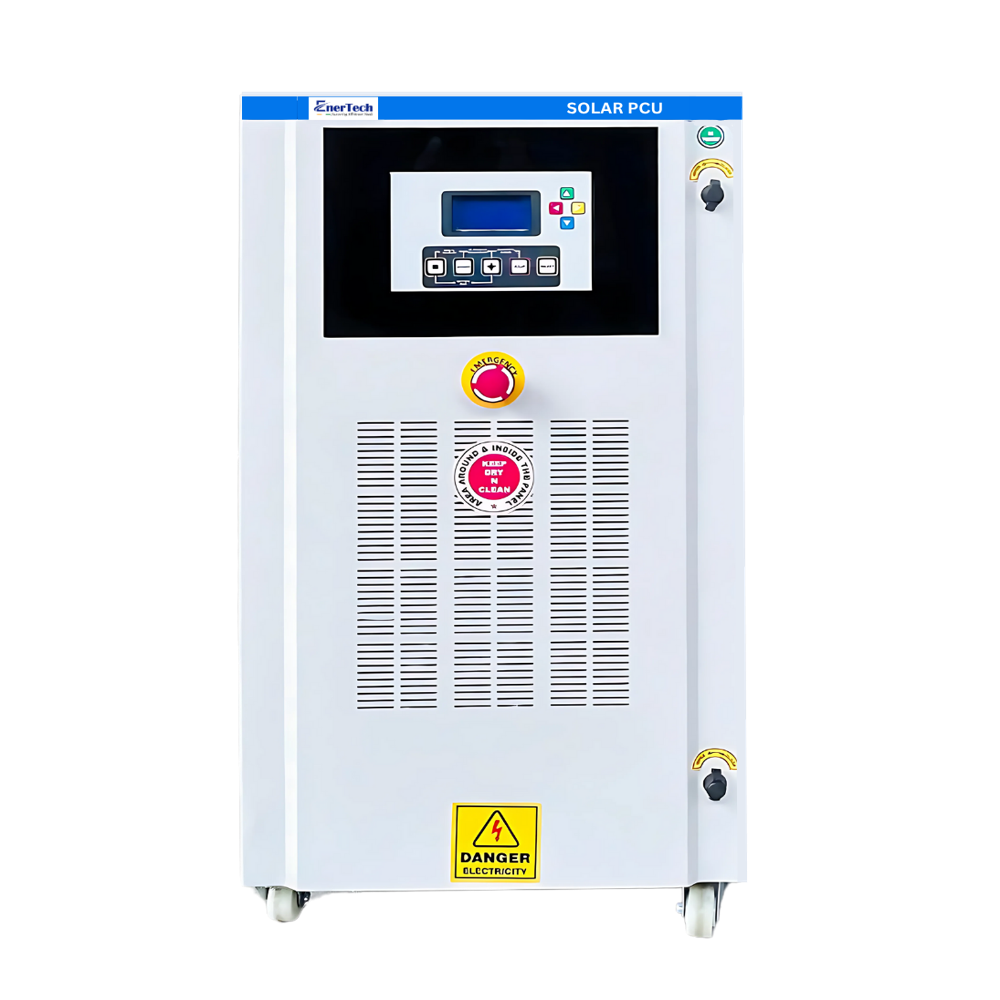

40kVA Three Phase Batteryless Solar Hybrid inverter

40kVA Three Phase Batteryless Solar Hybrid inverter Specification

Features
Batteryless, Solar-Grid Synchronization, Emergency Stop, LCD Display, Overload Protection, Integrated Monitoring

Input Voltage
600V DC

Maintenance Type
Low Maintenance

Efficiency
> 98%

Product Type
Three Phase Batteryless Solar Hybrid Inverter

Material
Metal Enclosure

Power
40kVA

Operating Temperature
0C to 50C

Max Voltage
600V DC (input)

Max System Voltage
1000V DC

Output Voltage
415V AC (Three Phase)

Cable Length
As per installation requirement

Switch Mode
Hybrid

Size
Standard Industrial

Dimension (L*W*H)
650mm x 550mm x 1200mm (Approx.)

Color
White with Blue Highlights

Weight
Approx. 150kg

Application
Commercial & Industrial Use

Type Of Technology
MPPT (Maximum Power Point Tracking)

Installation Type
Floor Mounted / Indoor

Protection Features
Over Temperature, Short Circuit, Surge Protection, Reverse Polarity

Operating Mode
Solar Priority/ Grid Priority/ Smart Mode

Cooling System
Forced Air Cooling

Grid Compatibility
Three Phase 415V, 50Hz

Display Type
Digital LCD

Communication Interface
RS-485/Ethernet (optional)

IP Rating
IP20

Solar Input Range
350V - 600V DC

Parallel Operation
Yes, up to 6 units

THD (Total Harmonic Distortion)
< 3% at linear load

40kVA Three Phase Batteryless Solar Hybrid inverter Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
2 Week

About 40kVA Three Phase Batteryless Solar Hybrid inverter

The 40kVA Three Phase Batteryless Solar Hybrid Inverter is designed for high-performance commercial and industrial applications. It efficiently utilizes solar power without requiring battery storage, reducing overall system cost. With intelligent energy management, it ensures uninterrupted power supply by seamlessly switching between solar and grid. Its robust design and advanced protection features guarantee reliability in demanding environments. This inverter is an ideal solution for businesses looking to reduce electricity costs and adopt clean energy.

Product Highlights

Capacity: 40kVA Three Phase Solar Hybrid Inverter
Batteryless Operation: Works efficiently without battery dependency
Solar Priority Mode: Maximizes solar usage to reduce electricity bills
Seamless Power Switching: Instant transition between solar & grid
Smart Energy Management: Intelligent load handling & optimization
Industrial & Commercial Use: Ideal for factories, petrol pumps, institutions
Advanced Monitoring: Real-time performance tracking (optional remote monitoring)
Robust Design: Built for long-lasting and reliable operation
Grid Interactive System: Supports export/import of power
Protection Features: Overload, short circuit, voltage & temperature protection

Advanced Batteryless Solar Technology

This inverter is designed to seamlessly synchronize with both solar power and the electrical grid without requiring batteries. Its MPPT technology and solar priority operating mode maximize energy harvesting, while hybrid switching allows for adaptable use in diverse commercial and industrial settings.

Reliable Protection and Smart Monitoring

Equipped with comprehensive protection-including over temperature, short circuit, surge, and reverse polarity-the inverter ensures safe and uninterrupted operation. The integrated digital LCD display, along with optional RS-485/Ethernet communication, allows for convenient performance monitoring and easy integration into existing solar infrastructure.

FAQ's of 40kVA Three Phase Batteryless Solar Hybrid inverter:

Q: How does the batteryless solar hybrid inverter operate in different modes?

A: The inverter supports Solar Priority, Grid Priority, and Smart Mode to optimize power use. In Solar Priority, it uses solar energy first, switching to grid power as needed. Grid Priority lets the grid supply energy primarily, while Smart Mode automatically selects the best source based on availability and demand.

Q: What types of locations are suitable for installing this inverter?

A: This inverter is ideally suited for commercial and industrial facilities requiring robust, uninterrupted power. It is floor-mounted and intended for indoor use in environments where three-phase 415V AC supply and adequate ventilation for forced air cooling are available.

Q: When is parallel operation necessary, and how is it achieved?

A: Parallel operation is recommended when higher power output or system redundancy is needed. Up to six units can be connected in parallel, allowing for scalable solutions tailored to varying energy requirements. Installation and commissioning should be conducted by qualified professionals to ensure system compatibility and safety.

Q: What are the benefits of its batteryless design for users?

A: Without batteries, the system reduces installation and maintenance costs, eliminates issues related to battery life and disposal, and offers greater operational efficiency. This design is particularly advantageous for users with stable grid availability and high energy demands.

Q: How are maintenance requirements addressed in this solar hybrid inverter?

A: The inverter is designed for low maintenance. Routine checks involve basic cleaning, ensuring clear airflow for cooling, and periodic inspection of electrical connections and protective features. The integrated monitoring system aids in early detection of potential faults.

Q: What is the process for monitoring and controlling the inverter?

A: Users monitor system performance and configure operational parameters via the onboard digital LCD display. Remote monitoring and advanced analytics are possible using the optional RS-485/Ethernet interface, making supervision and management more efficient for larger installations.
