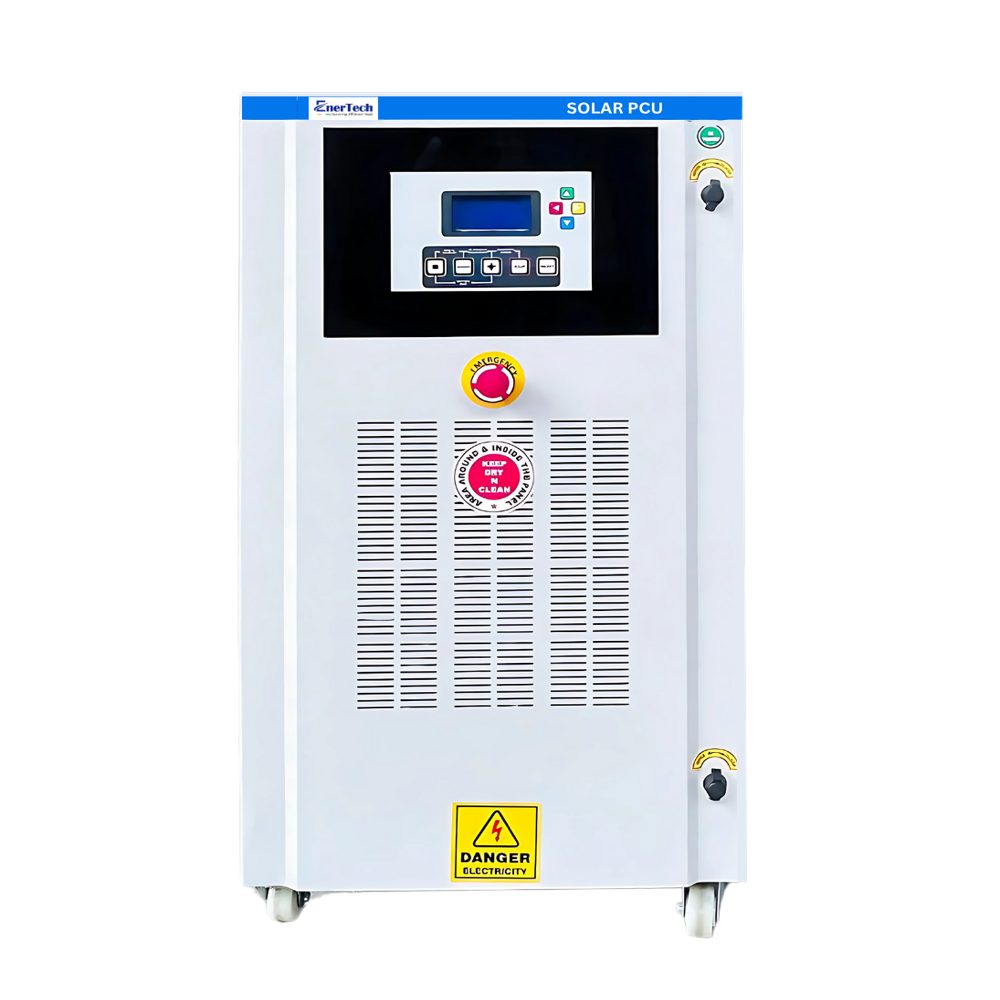

8kVA Single Phase Batteryless Off Grid Solar inverter

8kVA Single Phase Batteryless Off Grid Solar inverter Specification

Maintenance Type
Low maintenance

Features
Batteryless, Microprocessor based, LCD Display, Emergency Stop, Robust Design, Overload Protection, High-efficiency Operation, User Friendly

Input Voltage
180V to 270V AC (Utility) / 350V to 650V DC (Solar)

Efficiency
> 95%

Product Type
Single Phase Batteryless Off Grid Solar Inverter

Material
Metal enclosure (powder-coated steel)

Number of Cells
N/A (Batteryless Design)

Power
8 kVA

Operating Temperature
0C to 50C

Max Voltage
Up to 400V DC (Solar Input)

Max System Voltage
1000V DC (as per solar design)

Output Voltage
230V AC, Single Phase

Cable Length
As per installation requirement

Switch Mode
PWM/MPPT Based Switch Mode

Size
Compact Floor Standing Cabinet

Dimension (L*W*H)
Approx. 650 mm x 450 mm x 1050 mm

Color
White/Blue

Weight
About 70 kg

Application
Off-grid Solar Systems, Homes, Industries

Type Of Technology
Batteryless Solar Inverter

Installation Type
Floor Mounted

THD (Total Harmonic Distortion)
<3% at linear load

Display Type
Digital LCD Display with Status Indicators

IP Rating
IP21 (Indoor Use Only)

Cooling
Forced Air Cooling

Communication Interface
RS-232/RS-485 (Optional)

Noise Level
<60 dB @1m

Compliant Standards
IEC 61683 / IEC 60068-2 / IEC 62109-1-2

Humidity Range
0-95% RH, non-condensing

Start-up Time
<10 seconds

Protections
Overload, Short Circuit, Reverse Polarity, Over/Under Voltage, Over Temperature

About 8kVA Single Phase Batteryless Off Grid Solar inverter

Purchase the latest in renewable technology with the new release of our famed 8kVA Single Phase Batteryless Off Grid Solar Inverter, engineered for dazzling performance. This top-notch inverter, featuring forced air cooling and a digital LCD display, not only offers overload, short circuit, and reverse polarity protections but also boasts a compact, robust design crafted from powder-coated steel. Procure reliable energy conversion with high-efficiency operation (>95%), ultra-low THD (<3%), and advanced communication interfaces. Suited for diverse off-grid needs, experience secure, maintenance-light power, fully compliant with rigorous international standards.

Versatile Application and Powerful Features

The 8kVA Single Phase Batteryless Off Grid Solar Inverter is ideal for both homes and industries, making it a superb solution for various off-grid solar setups. Supporting a broad application media, its user-friendly design includes emergency stop, digital status indicators, and high-efficiency PWM/MPPT switch mode technology. With robust safety features like overload and over-temperature protection, this inverter ensures reliable operation in commercial spaces, small manufacturing units, and remote locations without access to grid electricity.

Export Markets, Secure Packing, and Domestic Distribution

Our inverter is distributed across major export markets, ensuring wide availability for global clients. Order processing is streamlined-from initial procurement to prompt shipment-accompanied by secure shipping and protective packaging, safeguarding each unit during transit. Domestically, the inverter is shipped to dealers, retailers, and direct consumers nationwide, enabling quick installation and immediate off-grid power solutions. Comprehensive support and after-sales service are also available to address your business or home needs efficiently.

FAQ's of 8kVA Single Phase Batteryless Off Grid Solar inverter:

Q: How does the 8kVA batteryless solar inverter benefit off-grid commercial and residential users?

A: The inverter provides a reliable, high-efficiency power source without the need for batteries, reducing maintenance costs and ensuring consistent electricity supply for both residential and commercial applications.

Q: What protections and features are included for enhanced safety?

A: It comes equipped with overload, short circuit, reverse polarity, over/under voltage, and over-temperature protections, along with an emergency stop and a sturdy metal (powder-coated steel) enclosure.

Q: When is the best time to install this inverter in a new solar setup?

A: Installation is ideal during the initial setup of your solar energy system, as its batteryless design and advanced features simplify integration and future maintenance.

Q: Where can I source, purchase, or order the inverter for my location?

A: You can procure the inverter through authorized dealers, distributors, or directly from the manufacturer, who supports both domestic and international shipments.

Q: What is the process of order handling and shipment for this inverter?

A: Order processing involves confirmation, secure packaging, and reliable shipping to your specified location, ensuring the inverter arrives safely and ready for installation.

Q: How user-friendly is the inverter for regular operation and monitoring?

A: It features a digital LCD display with clear status indicators, intuitive control, and simple maintenance requirements, ensuring virtually anyone can operate and monitor the unit with ease.
