Industrial Battery Charger

Frequency Converter

Online UPS

3kW 24VDC Single Phase Wall-Mounted Solar Hybrid Inverter

3kW 24VDC Single Phase Wall-Mounted Solar Hybrid Inverter Specification

Features
Over-voltage protection, Remote monitoring

Maintenance Type
Low maintenance

Input Voltage
110-215 Volt (V)

Product Type
Solar Hybrid Inverters

Material
MS

Switch Mode
Manual Switch

Color
White

Warranty
1 Year

Application
Commercial , Industrial

Installation Type
Surface Mounted

3kW 24VDC Single Phase Wall-Mounted Solar Hybrid Inverter Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Others

Supply Ability
100 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
As per the standard.

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO 9001:2015 CE Certified MNRE Approved

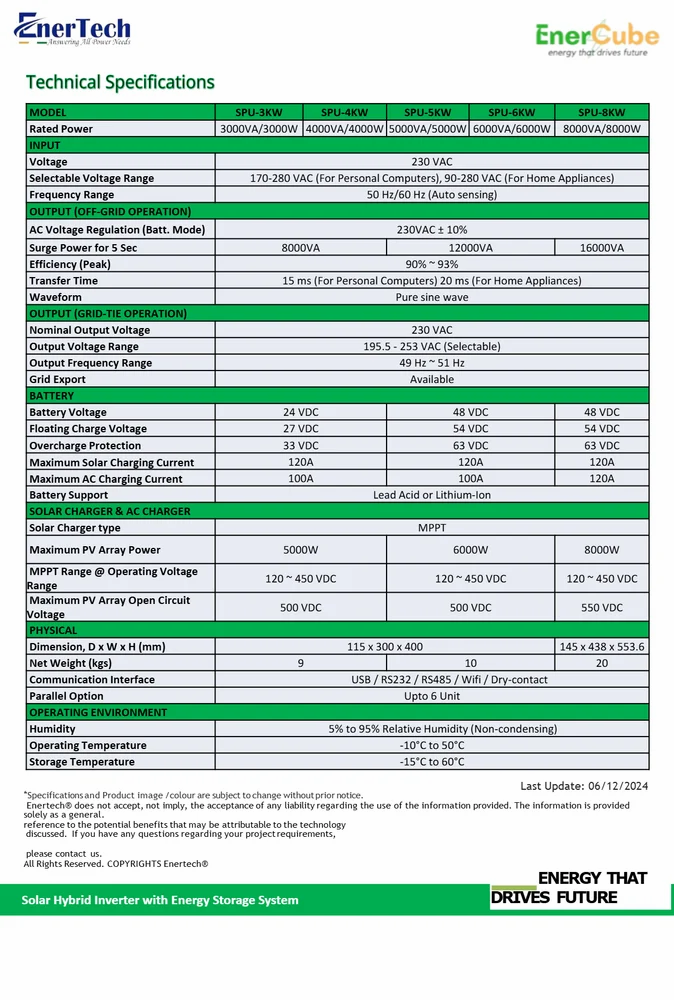

About 3kW 24VDC Single Phase Wall-Mounted Solar Hybrid Inverter

Capacity	3 kW
Brand	EnerTech
Model	EnerTron
Input Voltage	230 VAC
Warranty	2 Years
Country of Origin	Made in India
Selectable Voltage Range	170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
Waveform	Pure sine wave
Battery Voltage	24 VDC
Floating Charge Voltage	27 VDC
Overcharge Protection	33 VDC
Maximum Solar Charging Current	120A
Maximum AC Charging Current	100A
Battery Support	Lead Acid or Lithium-Ion
Dimension, D x W x H (mm)	115 x 300 x 400
Net Weight (kgs)	9 kg
Communication Interface	USB / RS232 / RS485 / Wifi / Dry-contact
Parallel Option	Upto 6 Unit
Availability	In Stock

Simplify your energy management with theEnerTech 3kW/24VDC Solar Hybrid Inverter. Whether youre on the grid or off, this inverter is built to handle it all with ease, offering reliable, efficient, and flexible power solutions for your home or office.

Included Material:

1. 3kW PCU Product

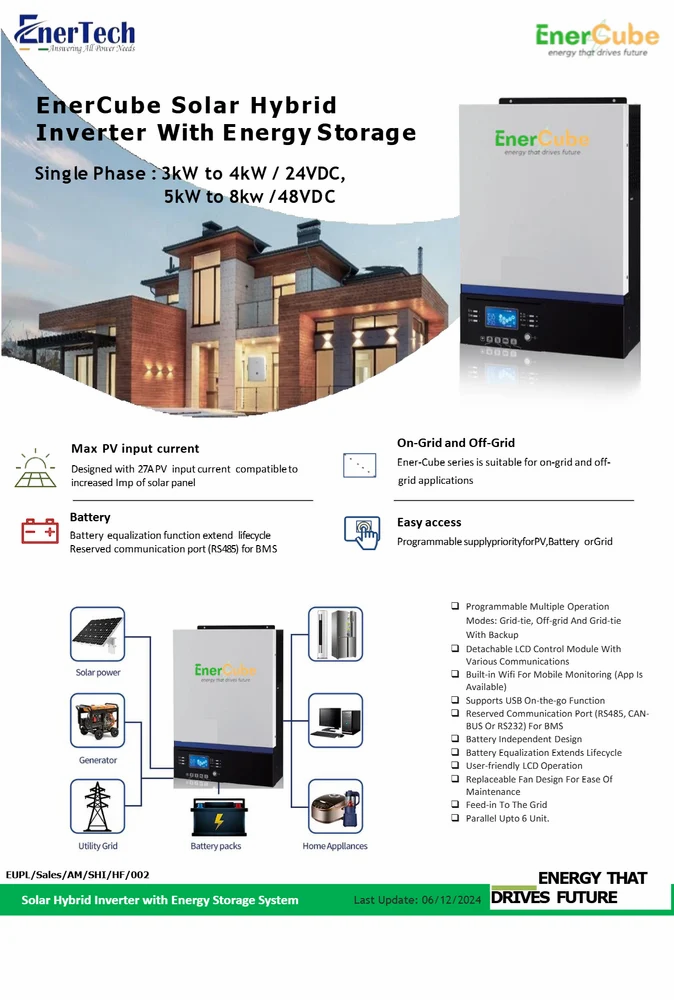

Key Features:

Multiple Operation Modes: Easily switch between Grid-tie, Off-grid, or Grid-tie with Backup for ultimate flexibility.
Built-in WiFi & Mobile App: Monitor your system anytime, anywhere from your phone.
Detachable LCD Panel: Easy control with a screen you can remove and customize.
USB Support: Quick and simple data transfer made easy.
Advanced Connections: Compatible with BMS systems through RS485, CAN BUS, or RS232.
Battery-Free Option: Works even without a battery for added convenience.
Easy Maintenance: Replaceable fan design and battery equalization to extend the systems life.
Feed Excess Energy to the Grid: Save more by selling your surplus solar power.
Expandable System: Link up to 6 units for greater power needs.
