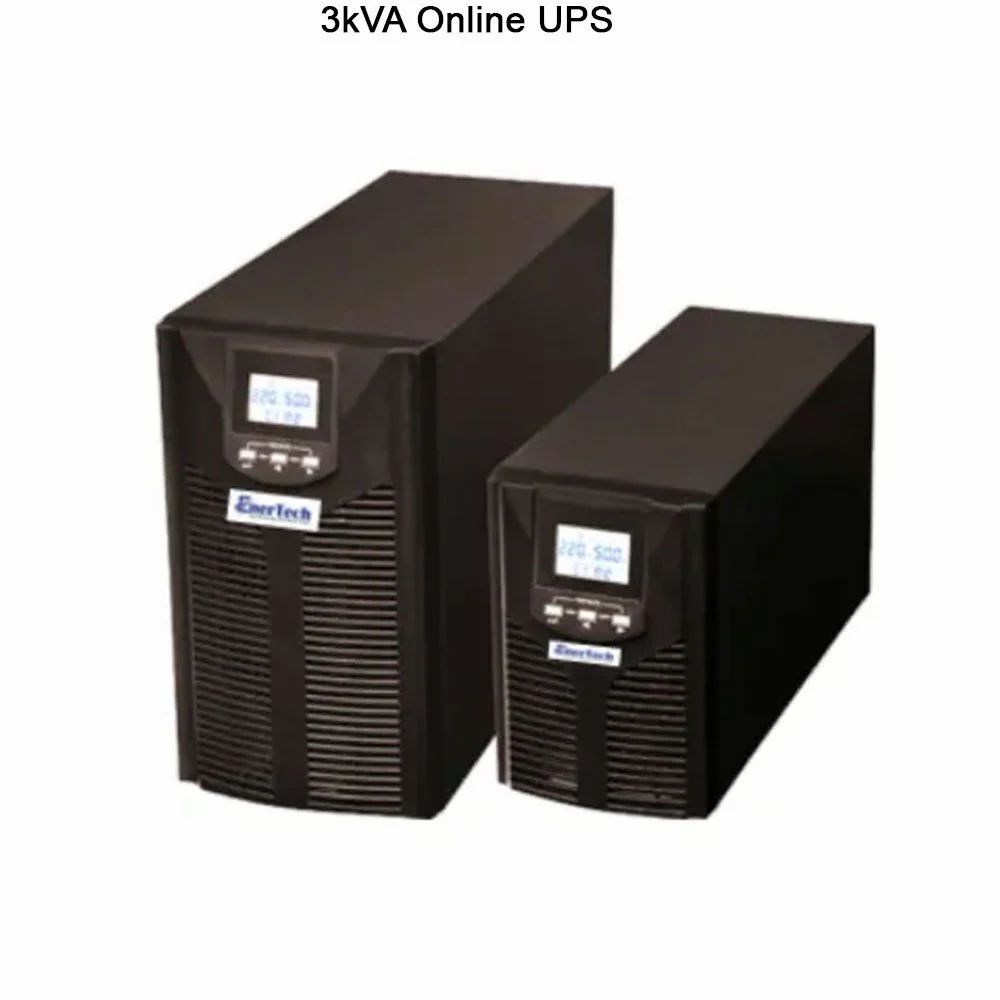

3kVA Online UPS

3kVA Online UPS
3kVA Online UPS
3kVA Online UPS
3kVA Online UPS

3kVA Online UPS Specification

  • Features
  • Good Quality
  • Display Type
  • LCD
  • Frequency
  • 50-60 Hertz (HZ)
  • Warranty
  • 1 year
  • Conductor
  • Copper
  • Material
  • MS
  • Cable Type
  • Power Cable
  • IP Rating
  • IP65 (Outdoor Rated)
  • Product Type
  • Online UPS
  • Protection
  • Overload, Short Circuit, IP65
  • Usage
  • Backup power for servers, medical equipment
  • Color
  • Black


3kVA Online UPS Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Others
  • Supply Ability
  • 20 Pieces Per Month
  • Delivery Time
  • 1 Week
  • Sample Available
  • No
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • As per the standard.
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001:2015 CE Certified MNRE Approved


About 3kVA Online UPS

Type
Online
Capacity
3 KVA
Brand
Enertech
Model Name/Number
ETXi HF
Input Voltage
220 / 230 / 240 V AC
Output Voltage
208 / 220 / 230 / 240 V AC (settable via LCD)
Configuration
1 Phase IN - 1 Phase OUT
Form Factor
Rack Mounted
Operating Temperature
0 DegreeC 45 DegreeC
Transfer Time
Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical)
Waveform
Sine Wave
Noise Level
<=40dB
Crest Factor
3: 1
Overload
105% 125% for 1 min, 125% 150% for 30 s, > 150% for 300 ms
Dc Voltage
72-96V
Bypass voltage range
-25% +15% (settable)
Power factor
>=0.99
IP rating
IP 21
Rated frequency
50 / 60 Hz (auto-sensing)
Availability
In Stock
Features:
  • 32bit DSP Based Processor
  • Bidirectional Power Conversion
  • IGBT Based Rectifier
  • Inbuilt Isolation Transformer Technology.
  • Vector Modulated Inverter Control Design
  • Suitable for 100% Unbalanced Load
  • 3-Stage with Temperature Compensated Charger
  • MODBUS Compatibility for Lithium-ion Batteries
  • Compatible with Different Battery Technology
  • Remote Monitoring unit
  • Solar Compatibility
  • Enclosure IP21 (Optional Up to 55).


FAQs of 3kVA Online UPS:


Q: What type of conductor is used in the 3kVA Online UPS?

A: The 3kVA Online UPS uses copper conductors.

Q: Is the 3kVA Online UPS suitable for outdoor use?

A: Yes, the 3kVA Online UPS is rated IP65, making it suitable for outdoor use.

Q: What protection features are included in the 3kVA Online UPS?

A: The 3kVA Online UPS includes protection features such as overload, short circuit, and IP65 protection.

Q: What type of display does the 3kVA Online UPS have?

A: The 3kVA Online UPS is equipped with an LCD display.

Q: What is the warranty period for the 3kVA Online UPS?

A: The 3kVA Online UPS comes with a 1-year warranty.

Q: What is the primary usage of the 3kVA Online UPS?

A: The 3kVA Online UPS is primarily used for providing backup power for servers, medical equipment, and similar applications.

Q: What is the frequency range of the 3kVA Online UPS?

A: The 3kVA Online UPS operates within a frequency range of 50-60 Hertz (Hz).
